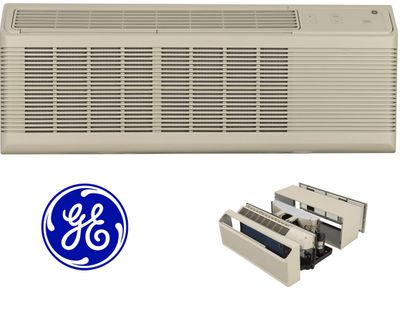

GE Zoneline AZ45E07EAC PTAC Air Conditioner with Electric Heat, 7,200 BTU, 265 Volt, EER Rating 13.2, Seacoast Protection, Cords, Wall Sleeves and Grilles Needed for New Installations Sold Separately
GE Zoneline AZ45E07EAC PTAC Air Conditioner with Electric Heat, 7,200 BTU, 265 Volt, EER Rating 13.2, Seacoast Protection, Cords, Wall Sleeves and Grilles Needed for New Installations Sold Separately
Redesigned with a fresh, sleek appearance, our latest Zoneline PTAC models offer new features customers want. GE Zoneline packaged terminal room air conditioners are assembled in Louisville, KY. In 1961, the GE Zoneline PTAC was making its way into hotels and motels across the country. Now, over 50 years later, GE Zoneline has been reinvented to meet the changing needs of America’s hotel industry. The newest GE Zoneline PTACs are engineered with 30% fewer parts to be more reliable, quiet and efficient, and incredibly easy to install and maintain.
GE Zoneline PTAC Air Conditioners provide year-round comfort with individual heating and cooling temperature controls. Designed for a wide range of applications, these units are ideal for hotels and motels, office buildings, schools and apartments. All Zoneline units feature the exclusive GE "Superseal" system which minimizes energy usage by reducing air filtration. The result is maximum operating efficiency and a more comfortable room. All Zoneline units are also very quiet thanks to lower sound level and lower sound transmission.
GE designed their Zoneline units with innovative, universal components, and offer even greater installation flexibility than ever, whether in new construction, renovation or for replacement of old units. Unless specified by code, they require no sub-base and may be installed flush with the finished floor. All models are adaptable to remote and central desk control. Zoneline units may even be placed in unusual locations, such as transom or common are installations. All units come with microcomputer controls.
FEATURES & BENEFITS
Smart Fan, Fan Cycle Control
Heat Sentinel
Freeze Sentinel
Venting Features: Concealed Manual Vent Control.
Vent Air Filter.
Outdoor Vent Control: 3 Positions
Temperature Limiting: Electronic 7-Step
Control Type: Coverless Backlit White LED Touch Controls
Automatic Indoor Frost Control
Universal Heaters
Auto Power Recovery
Remote Thermostat Compatibility
Central Desk Control Compatibility
Proportional-Integral ID Airflow
Random Twist/Length Segment Tangential Blower
Weather Protected Electrical Components
Sleep Mode
LCDI Power Cord
SPECIAL FEATURES
Sensible Heat Ratio 80%
Chassis Type Slide-In
Control Type Coverless Backlit White LED Touch Controls
Discharge Grille 2-position
Electronic Micro Computer Control Yes
Fan Cycle Switch Yes
Fan Motor 2
Fan Speed Control Yes
Fan Speed Selections Hi/Low Cooling, Hi/Low Fan Only,
Hi/Low Heating
Filter Type Rigid Frame, Slide-Out
Heat - Cool Yes
Louver Style Reversible
Manual Vent Control Hidden
Rotary Compressor Yes
Temperature Limiting Electronic 7-Step
Vent Control 3-position
Venting Features Concealed Manual Vent Control
Outdoor Vent Control - 3 Positions
Vent Air Filter
Zoneline Features "Sleep" Mode
"Smart Fan" Fan Cycle Control
Auto Power Recovery
Automatic Indoor Frost Control
Central Desk Control Compatibility
Freeze Sentinel
Heat Sentinel
LCDI Power Cord
Proportional - Integral ID Airflow
Random Twist/Length Segment Tangential Blower
Remote Thermostat Compatibility
Universal Heaters
Weather Protected Electrical Components
Temperature Range 60 - 85 F
CAPACITY
Cooling BTUH (MIN) 7200.0 Btu
Cooling BTUH (MAX) 7200.0 Btu
Cooling EER (BTUH / Watt) 12.3
CFM Indoor Fan High 290
CFM Indoor Fan Low 215
Dehumidification (pts./hr.) 1.7
Vent CFM (high fan at zero ESP) 50/40
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 110 lb
Net Weight 110 lb
Overall Depth 20 3/8 in
Overall Height 16 in
Overall Width 42 in
POWER/RATINGS
Cooling - Amperes; F.L. - Cooling 2,4
Cooling - Amperes; L.R. 12.0
Cooling - Watts 590
Power Factor 90
Voltage (MIN) 265.0 V
Voltage (MAX) 265.0 V
CLAIMS & CERTIFICATIONS
cUL
UL
AHRI
NRCAN
MANUFACTURER WARRANTY
Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Warranty Notes See written warranty for full details
