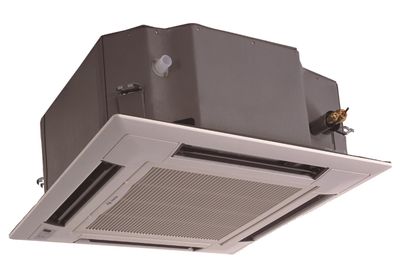

GREE CAS18HP230V1AC Ceiling Cassette Indoor Unit, 18,000 BTU, 230/208 Volt, R410A refrigerant, Internal Drain Pump, Tether Controller and IR Remote, 4-Way Air Discharge, Decorative Air Grille Sold SeparatelyGree's +Multi Ceiling Cassette will inconspicuously provide quiet performance through innovative design. The +Multi
Ceiling Cassette is extremely suitable for any room, and can be easy installed in suspended ceilings with only a discreet decorative discharge grille visible. Gree's fan technology quietly and evenly distributes conditioned air throughout the room, and an internal condensate pump reliably disposes condensate water to a safe location. The +Multi Ceiling Cassette is ideal for light commercial applications which require comfort control in large, open spaces. Each +Multi Ceiling Cassette can be operated by an infrared remote control or wired tether controller, allowing maximum flexibility for any application
One of today’s most advanced inverter-driven ductless split systems, our acclaimed Gree +Multi systems will facilitates multiple room continuity for both heating and cooling. The Gree +MULTI zone system is a synthesis of hi-wall heat pump units that can be mixed and matched for use in up to five zones – ideal for residential and light commercial application. Ecologically engineered to achieve up to 16 SEER, the Gree +Multi operates with low frequency inverter technology that significantly reduces energy consumption by adjusting the compressor speed according to the room’s required load. Wireless remote controls allow zone-by-zone temperature composition for individual rooms and integrate I FEEL functionality, intuitively sensing the temperature surrounding the remote controls in order to adjust airflow and maximize comfort. Eco-friendly by design, the Gree +Multi uses R401A refrigerant to generate cooler or warmer temperature levels, while a state-of-the-art photocatalytic filtration system purifies air quality by eliminating 99.9% of bacteria and contaminants. The Gree +Multi’s intelligent engineering means a high-efficiency system with world-class performance that provides comfort, uncompromising personal style, and tremendous energy savings.
Cool Running Ductless Mini Split Internet Sales Policy
Tradewind Climate Systems/GREE expressed Duct Free Air Conditioning Warranty policy applies only to products sold and installed by qualified air conditioning contractors.
Because products sold via the internet cannot be assured of quality installation by a qualified air conditioning contractor, Tradewind Climate Systems/GREE expressed warranty may not apply to internet sales.
Tradewind Climate Systems/GREE supports and recommends that a qualified air conditioning contractor properly size and install all Carrier Enterprise/GREE Duct-Free Air Conditioning products for optimal performance and long life.
Cool Running Hospitality Supply agrees and fully supports this policy. Tradewind Climate Systems/GREE and Cool Running accept no responsibility for improperly installed units.
FEATURES & BENEFITS
- Internal Condensate Drain Pump
- Sentry Float Switch
- Cleanable Air Filter
- Fresh Air Intake ( 24K model only)
- Healthy Filter (Optional)
- Power Failure Recovery
- IR Remote Control and Tether Wired Controller
- Decorative Discharge Air Grille (sold separately)
- 4-way Discharge Air
- Multi Speed Fan
- Remote Control Lockout
- Swing Louver
PRODUCT SPECIFICATIONS
Nominal Capacity-Cooling Btu/h: 15,359
Nominal Capacity-Heating Btu/h: 17,065
Power Supply: 230-208V/60Hz
Airflow-H/M/L CFM: 353/292/251
Sound Pressure Level -H/M/L dB(A): 46/44/42
Unit Dimension (WxHxD) inch: 22.5 x 22.5 x 9
Package Dimension (WxHxD) inch: 33.5 x 29 x 13
Net/Gross Weight lbs.: 40/51
Piping Connections (Liquid-Gas/Suction) inch: 1/4-1/2
Part Number Discharge Grille: CASGRILLE1SM
MANUFACTURERS WARRANTY
- A warranty period of Seven (7) years on compressor to the original registered end-user.
- A warranty period of Five (5) years on all parts to the original registered end user.
- A warranty period of One (1) year on the remote control provided with the original unit.
- Limited warranty applies only to systems that are properly installed by a state certified or licensed HVAC contractor,under applicable local and state law in accordance with all applicable building codes and permits; GREE installation and operation instructions and good trade practices.
- Warranty applies only to products remaining in their original installation location.
GREE Ductless Mini Split WARRANTY FORM DOWNLOAD
GREE Ductless Warranty Service Form
Cool Running Ductless Mini Split Internet Sales Policy
- Tradewind Climate Systems/GREE expressed Duct Free Air Conditioning Warranty policy applies only to products sold and installed by qualified air conditioning contractors.
- Because products sold via the internet cannot be assured of quality installation by a qualified air conditioning contractor, Tradewind Climate Systems/GREE expressed warranty may not apply to internet sales.
- Tradewind Climate Systems/GREE supports and recommends that a qualified air conditioning contractor properly size and install all Carrier Enterprise/GREE Duct-Free Air Conditioning products for optimal performance and long life.
- Cool Running Hospitality Supply agrees and fully supports this policy. Tradewind Climate Systems/GREE and Cool Running accept no responsibility for improperly installed units.
