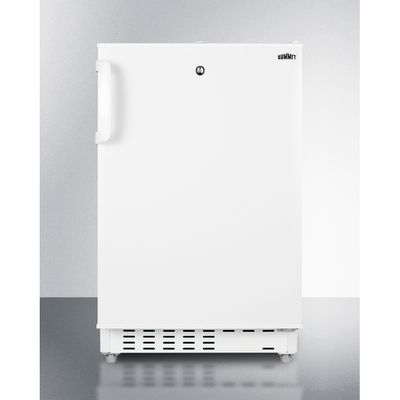

SUMMIT ALRF48 20" Wide Built-in Refrigerator-Freezer, ADA Compliant
FEATURES & BENEFITS
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Freezer compartment
Interior freezer compartment offers convenient storage for frozen items
Door shelves
Three removable door racks for additional storage of larger items
Adjustable shelves
Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
Fruit and vegetable crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Reversible door
User-reversible door swing for added flexibility to best accommodate your setting
3" thick door
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space
Factory installed lock
Lock provides added security of unit (2 keys included)
Sealed back
Space-saving design that offers easier cleanability
Right-angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Manual defrost
Efficient performance with reliable temperature stability
Interior light
Front-located LED light ensures entire interior is lit when door opens
Fully finished white cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulationsPRODUCT SPECIFICATIONS
Height of Cabinet: 31.75" (84 cm)
Height to Hinge Cap: 32" (85 cm)
Width: 19.75" (47 cm)
Depth: 22.5" (51 cm)
Depth with door at 90°: 40.25" (95 cm)
Capacity: 2.68 cu.ft. (76 L)
Defrost Type: Automatic
Door: White
Cabinet: White
US Electrical Safety: ETL
Canadian Electrical Safety: ETL-C
Energy Usage/Year: 259.0kWh/year
Amps: 1.1
Voltage/Frequency: 115 V AC/60 Hz
Shipping Weight: 65.0 lbs. (29 kg)
Refrigerator-Freezer Features
Door Swing: RHD
Reversible: Yes
Adjustable Shelves: Yes
Crisper Quantity: 1
Crisper Finish: Transparent
Crisper Cover: Glass
Refrigerator - Interior Height: 17.5" (42 cm)
Refrigerator - Interior Width: 16.25" (41 cm)
Refrigerator - Interior Depth: 17" (37 cm)
Refrigerator - Shelf Type: Glass
Refrigerator - Shelf Quantity: 3
Refrigerator - Full Door Shelves: 3
Freezer - Interior Height: 5.75" (11 cm)
Freezer - Interior Width: 16.25" (32 cm)
Freezer - Interior Depth: 11.25" (28 cm)
Thermostat Type: Dial
Refrigerant Type: R600a
Refrigerant Amount: .92 oz.
High Side PSI: 180.0
Low Side PSI: 80.0
Level Legs: 2
Compressor Step Height: 6.25" (17 cm)
Compressor Step Width: 16.25" (41 cm)
Compressor Step Depth: 6" (11 cm)MANUFACTURERS WARRANTY
Parts & Labor Warranty: 1 Year
Compressor Warranty: 5 Years
