Accucold's MED2 series puts the most commonly requested features into a quality line of all-refrigerators and freezers specially designed to store vaccines and other sensitive materials in medical, scientific, pharmaceutical, and laboratory institutions.

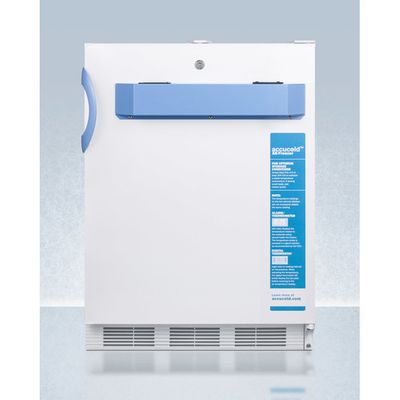

The VT65MLBIMED2ADA is an all-freezer sized in a convenient 24" footprint and 32" height. The front breathing design allows built-in installation under lower ADA compliant counters, while the fully finished cabinet in white also enables freestanding use. This unit is designed with an external front control panel that allows users to adjust and monitor the temperature without opening the door or bending down to the floor. The front keyed lock is located towards the top of the door for added convenience. A hospital grade 'green dot' cord offers added safety in high traffic environments.
As recommended by the CDC and VFC programs, the VT65MLBIMED2ADA is equipped with a NIST calibrated thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit. Each VT65MLBIMED2ADA ships with a certificate of calibration for your records. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filled bottle to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment.
The VT65MLBIMED2ADA features a 3.2 cu.ft. interior capacity and extra thick walls for reliable insulation. Slide-out baskets with clear plastic fronts allow users to view stored contents without exposing them to room temperature every time the door is opened. This low temperature freezer is designed to operate between -12ºC to -25ºC, an ideal temperature for certain vaccines, samples, and other sensitive medical materials. It has a flat door liner as recommended by the CDC.
All MED2 series units are assembled in the USA from domestic and imported components. The VT65MLBIMED2ADA can be paired with a matching all-refrigerator (FF7LBIMED2ADA). This unit can also be customized with additional features, including a self-closing door or USB temperature logger with a digital display. Contact our product specialists to learn more. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor.
*NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.
NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.
FEATURES AND BENEFITS
Reliable temperature stability
Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions
ADA compliant design
32" height allows installation under lower ADA compliant counters
Built-in capable
Front-breathing design allows built-in installation under counters
-25º C/-13º F capable
Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
Digital thermostat
Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display
Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
Buffered temperature probe
Thermometer probe is encased in a glycol-filled bottle to maintain temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
Factory installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Manual defrost
Static cooling system for reduced temperature fluctuations
Hospital grade cord and plug
Secure three-pronged cord for added unit safety
3/8" access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Three slide-out drawers
Slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Fully finished white cabinet
Allows the unit to be used freestanding
Foamed-in-place cabinet
Quality design ensures efficiently insulated interior
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Matching refrigerator available
Pair with the FF7LBIMED2 to create a complete set
Factory reversible door
Standard unit ships with a right-hand door swing. For a left-hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
Extended warranty
This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
100% CFC free
Environmentally friendly design without ozone-damaging chemicalsPRODUCT OVERVIEW
Height of Cabinet: 32.0" (81 cm)
Height to Hinge Cap: 32.38" (82 cm)
Width: 23.63" (60 cm)
Depth: 23.63" (60 cm)
Depth with Handle: 25.0" (64 cm)
Depth with door at 90°: 45.75" (116 cm)
Capacity: 3.2 cu.ft. (79 L)
Defrost Type: Manual
Door: White
Cabinet: White
US Electrical Safety: ETL
Canadian Electrical Safety: ETL-C
Sanitation: ETL-S
Amps: 1.3
Voltage/Frequency: 115 V AC/60 Hz
Weight: 105.0 lbs. (29 kg)
Shipping Weight: 115.0 lbs. (39 kg)
FREEZER
Door Swing: RHD
Reversible: Factory Reversible
Interior Height: 224.25" (62 cm)
Interior Width: 17.75" (45 cm)
Interior Depth: 16.5" (42 cm)
Thermostat Type: Digital
Refrigerant Type: R134a
Refrigerant Amount: 2.76 oz.
High Side PSI: 235.0
Low Side PSI: 88.0
Level Legs: 4
Interior Drawers: Yes
Drawers Qty: 3MANUFACTURERS WARRANTY
Parts & Labor Warranty: 1 Year
Compressor Warranty: 5 Years
