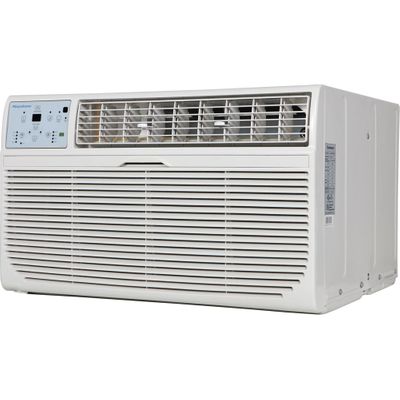

Keystone KSTAT10-2HC 10,000 BTU Through the Wall Air Conditioner with ELECTRIC HEAT, 230/208 Volt, EER Rating of 10.6, Electronic Controls and Remote Control, Wall Sleeves Needed for New Installations Sold Separately
The Keystone 10,000 BTU 230V through-the-wall air conditioner with 10,600 BTU Supplemental Heat Capability is perfect for rooms up to 450 square feet. In addition to cooling, this versatile unit also offers supplemental heat capability, providing you with an additional heat source to your main heat source when outdoor temperatures are above 45 degrees Fahrenheit. It has electronic controls with LED display and a temperature sensing LCD remote control allowing you to conveniently see, set and maintain the room temperature from across the room. Money saving features include energy saver mode, sleep mode and a programmable 24-hour timer. This unit is designed for through-the-wall installation and is not designed for standard window installation (WALL SLEEVE SOLD SEPARATELY). This unit also requires a special 230-volt/20-amp electrical outlet and will not operate with a standard 115V household electrical outlet.
FEATURES & BENEFITS
SUPERIOR COOLING AND HEATING: With a 9.5 energy efficiency ratio (EER), this 12,000 BTU through the wall air conditioner can effectively cool rooms up to 550 sq. ft and dehumidify up to 2.5 pints per hour. (Product is not suitable for window installation). Integrated electric heater provides supplemental heating of 10,600 BTUs.
230-VOLT/20-AMP ELECTRICAL OUTLET REQUIRED: This air conditioner has a 6.5ft power cord with a NEMA 6-20P grounding plug that will not fit a standard 115V electrical outlet.
TEMPERATURE SENSING “FOLLOW ME” REMOTE CONTROL: With a thermostat built into the remote control, say good-bye to uneven room temperatures. The remote makes it easier to control the unit from anywhere in the room and its integrated thermostat signals the AC to cool the space based on where you are.
FRONT-ACCESS FILTER: Let’s face it. Filters collect dust. With our front-access design, cleaning that dusty filter is a piece of cake. Simply pull it out, vacuum or rinse and dry, and slide back into place. No hassle and no disassembly required.
GUARANTEED FIT: This air conditioner will fit in your existing 24.5” to 27” sleeve. We guarantee it. At 20.3” D x 24.2” W x 14.5” H, we provide the foam seals and installation kit necessary to retrofit your existing sleeve. If you don’t have a sleeve, the matching Keystone KSTSLV1 is also available for purchase (sold separately).
ENERGY-CONSCIOUS OPTIONS: While there are 3 cooling modes, heating mode, and 3 fan speeds pre-programmed, you have flexibility. The Auto option will automatically ramp up and down the fan speed to keep you’re pre-set temperature constant. The Energy-saver mode conserves energy and saves you money by turning off the compressor once your desired temperature is reached.PRODUCT SPECIFICATIONS
Power Supply: 230V/60 Hz
Cooling Capacity: 10,000 BTU/hour
Heat Pump: 10,600 BTU/hour
Power Input, Cooling: 1,020 W
Power Input, Heating: 3450 W
Cooling Amps: 4.6
Heating Amps: 15
EER: 9.6
Energy Star: No
Indoor Noise Level, DBA: 58
Air Flow Volume, CFM: 287
Cooling Area: 450 sq. ft.
Cooling Speeds: 3
Fan Speeds: 3
Dimensions, WxDxH: 24,2" x 20.3" x 14.5"
Net Weight: 74 lbs.
Included Accessories: remote control, 2 AAA batteries, mesh filterMANUFACTURERS WARRANTY
One year warranty: One year from original purchase date
Limited 2nd-5th year warranty (sealed system): Second through fifth years from date of purchase
