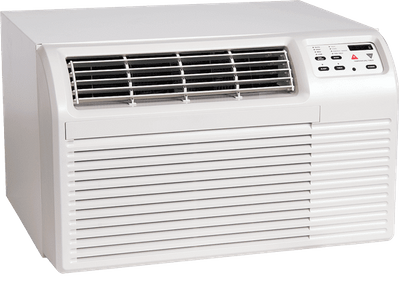

Amana PBE093G35CB Through the Wall Air Conditioner with ELECTRIC HEAT, 9,300 BTU, 230/208 Volt, EER Rating of 9.8, Digital Controls with Remote Control, Wall Sleeves Needed for New Installations Sold Separately
High Efficiency with models up to 9.5 EER saving you money when compared to other competition models.
Easy removable condenser top that allows for quick and complete cleaning of outdoor coils. This access for cleaning the outdoor coil enables easy removal of dirt and debris to dramatically lengthen the life of the compressor and other sealed system components. Six easy access screws and let the cleaning begin! Not available on competitor models!
Easy access slide out filter has a permanent polypropylene filter mesh that is easy to remove and clean.
Accessory Wall Sleeve: PBWS01A is a solid-side, heavily insulated metal sleeve. It includes a stamped aluminum exterior grille with a weather-seal rear enclosure for installation without the chassis. The sleeve has a solid bottom for complete weather-tight installation. An optional PBWMFC can be used when a more permanent weather seal is needed for sleeves installed without the chassis.
100% Full Factory run test on all units for high reliability and dependability. Units start the first time, every time!
4-Way Adjustable airflow to allow for cooling or heating to any part of the room.
Quiet Operation. Designed with guest comfort in mind, providing reliable, quiet operation for years to come.
LITERATURE DOWNLOADS
AMANA THROUGH THE WALL AIR CONDITIONER SALES BROCHURE FEATURES & BENEFITS
Agency approval UL listed in USA and Canada
Chassis type: Slide out
Fan speeds: (2) High and Low
Energy Saver: Yes (Cooling only, auto fan operation)
Fan only: Yes, high speed
Exhaust: CFM 300
Discharge air: Top discharge 4-way adjustable air flow
Top slide out filter, pull out polypropylene permanent washable filter
Condensate: Yes, external drain sprout on the PBWS01A optional wall sleevePRODUCT SPECIFICATIONS
Cooling Capacity BTU: 9,300/9,100
Cooling Current (Amps): 4.3/4.7
Cooling Power (Watts): 950/930
EER Rating: 9.8/9.8
Moisture Removal (Pints/Hour): 2.50
Heating Capacity BTU: 11,000/9,000
Heating Current (Amps): 15.2/14.0
Heating Power (Watts): 3,500/2,900
COP: N/A
Air Flow CFM (H/M/L): 265
ELECTRICAL DATA
Voltage: 230/208 Volt
NEMA Plug Configuration: NEMA 6-20P
Power Cord Length: 6'
DIMENSIONS & WEIGHT
Unit Width: 26.0"
Unit Height: 15.5/8"
Unit Depth: 21.7/8"
Net Weight: 77 lbs.
Shipping Weight: 90 lbs.
LITERATURE DOWNLOADS
AMANA THROUGH THE WALL AIR CONDITIONER SALES BROCHUREMANUFACTURERS WARRANTY
1-Year entire unit and 5-Year sealed system components: Goodman will repair or replace any factory defective part or sealed system leak caused by a defective part and pay labor and associated service costs directly related to the part replacement or repair. See product warranty for complete details.
