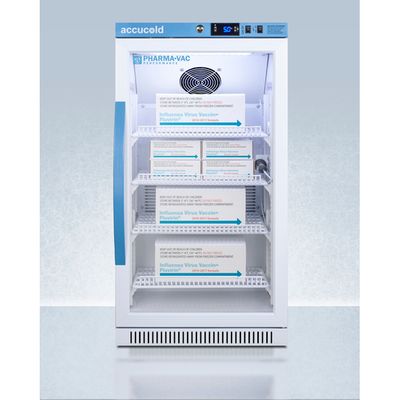

Accucold's Pharma-Vac Performance Series are upright all-refrigerators designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines.
The ARG31PVBIADA is a 2.83 cu.ft. all-refrigerator with a temperature range of +2°C to +8°C. Sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. It is designed for freestanding or recessed installation. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.
Inside, the ARG31PVBIADA utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan to ensure excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.
The ARG31PVBIADA comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The double pane tempered glass door provides a full view of the interior. The user-reversible door ships with a right-hand swing and self-closing function (note: self-closing is disabled once reversed to LHD), while a factory-installed lock provides security as needed, with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.
Designed with hydrocarbon refrigerant, the ARG31PVBIADA provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as solid door options, are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac.
NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
FEATURES AND BENEFITS
ADA compliant 32" high to fit under lower: ADA compliant counters
Slim 20" width: Full 4.1 cu.ft. capacity inside conveniently slim footprint
Built-in capable: Make the best use of space by installing your appliance under the counter
Fully finished white cabinet: Allows the unit to be used freestanding
Glass door: Provides a full display of stored contents
Factory installed lock: Keyed lock for secure interior Automatic defrost: Reduced maintenance with auto defrost system
Digital thermostat: Electronic controls for more precise temperature management
Internal fan with heat sink: Fan-forced cooling ensures the unit is evenly cooled from top to bottom
High temperature alarm: Warns of temperature fluctuations and includes an external temperature readout on the door
Hospital grade cord with 'green dot' plug: Secure three-pronged cord for added unit safety
Adjustable shelves: Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup Interior light: Turn the light on and off with a convenient rocker switch
100% CFC Free: Environmentally friendly design with no ozone-damaging chemicalsOVERVIEW
Height of Cabinet: 32.0" (81 cm)
Width 19.75" (50 cm)
Depth 22.63" (57 cm)
Capacity: 2.83 cu.ft. (116 L)
Defrost Type: Automatic
Door: Glass
Cabinet; White
US Electrical Safety: ETL
Canadian Electrical Safety; ETL-C
Amps .75
Voltage/Frequency 115 V AC/60 Hz
Weight: 102.0 lbs. (27 kg)
Shipping Weight: 150.0 lbs. (38 kg)
REFRIGERATOR FEATURES
Door Swing: RHD
Reversible: Yes
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.41oz.
High Side PSI 280.0
Low Side PSI 90.0
Interior Light Yes
Temperature Range 2º to 8ºF
DIMENSIONS
Interior Height 24.0" (61 cm)
Interior Width 16.0" (41 cm)
Interior Depth 15.0" (38 cm)MANUFACTURERS WARRANTY
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
