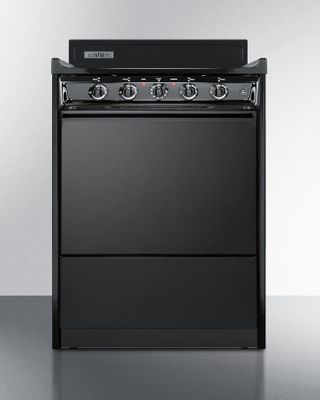

SUMMIT TEM610C 24" Wide Coil-top Electric Range in Black, ADA Guidelines, Made in USA
24" wide electric range ideal for smaller kitchen spaces
Designed to meet ADA guidelines for improved accessibilty
Lower storage area for added convenience
Recessed oven door for cabinet protection
Made in the U.S.A.
SUMMIT offers a wide selection of household ranges with high quality construction at superior value.
At just 24" wide, the TEM610C brings quality cooking to apartments and other small kitchens. All controls are front-located to meet ADA guidelines for accessible use. This unit includes a lower storage compartment ideal for keeping pots and pans out of the way. An anti-tip bracket is included for added safety. The interior includes two oven racks.
Made in the U.S.A., the TEM610C is constructed from porcelain and steel for maximum durability. This unit comes in a jet black finish.FEATURES & BENEFITS
24" wide: Perfectly sized for apartments and other homes with smaller kitchen spaces
Four coil elements: Surface features one 2100W 8" element and three 1200W 6" elements
Chrome drip pans: Each element includes a removable chrome pan for easier cleaning
Lower storage compartment: Keep pots and pans inside the lower compartment for easy storage
Waist-high broiler: Broiler is located inside the oven, making it easier to use
Recessed oven door: Smart design limits the depth and protects adjacent cabinets
Porcelain construction: Solid porcelain range top and oven
Removable oven door and range top: Black porcelain oven door and top can be removed for easier cleaning
Oven racks: Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Push-to-turn burner knobs: Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
Indicator lights: Control panel includes an 'on' light for the oven and burners for added safety when using the range
Broiler tray included: Porcelain broiler tray with grease well
Anti-tip bracket: Install to prevent accidents from tipping oven over
220V electric range: Cord not included
ADA compliant: Upfront controls and easy-to-operate knobs offer easier accessibilityPRODUCT SPECIFICATIONS
OVERVIEW
Height of Cabinet : 40.0" (102 cm)
Width : 24.0" (61 cm)
Depth : 24.0" (61 cm)
Door : Black
Cabinet : Black
US Electrical Safety : CSA
Voltage/Frequency : 220 V AC/60 Hz
Weight 140.0 lbs. (64 kg)
Shipping Weight : 200.0 lbs. (91 kg)
ELECTRIC RANGE
Oven Capacity : 2.92 cu.ft. (83 L)
Cooktop Surface : Porcelain
Element Type : Coils
Number of Elements : 4
Element #1 Size : 6.0" (15 cm)
Element #1 Wattage : 1200.0
Element #2 Size : 6.0" (15 cm)
Element #2 Wattage : 1200.0
Element #3 Size : 6.0" (15 cm)
Element #3 Wattage : 1200.0
Element #4 Size : 8.0" (20 cm)
Element #4 Wattage : 2100.0
Burner Controls : Dial
Oven Controls : Dial
Backguard : Yes
Cleaning Type : Manual
Oven Rack Qty : 2
Oven Interior Height : 14.0" (36 cm)
Oven Interior Width : 19.0" (48 cm)
Oven Interior Depth : 19.0" (48 cm)
Storage Compartment : Yes
Broiler Location : Inside Oven
Oven Door : WhiteMANUFACTURERS WARRANTY
Parts & Labor Warranty : 1 Year
