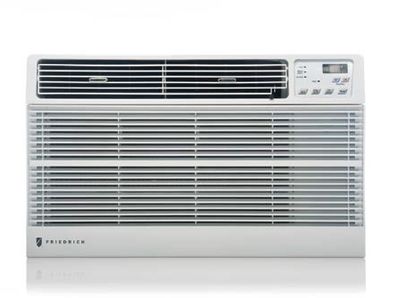

Friedrich UET12A33A Uni-Fit Through the Wall Air Conditioner with ELECTRIC HEAT, 12,000 BTU, 230/208 Volt, EER Rating of 9.7, GoldFin Protection, Digital Controls with Remote Control, Wall Sleeves Needed for New Installations Sold SeparatelyUni-Fit® makes it easy to replace air conditioners for existing 24.5", 26" or 27 ½" sleeves without complicated, time-consuming retrofits. This small unit is specifically designed to replace virtually any thru-the-wall air conditioner quickly and cost-effectively.
Depending on the existing sleeve’s size, Uni-Fit’s smaller dimensions may require the use of the included trim ring to bridge a small gap between the unit and the existing sleeve. The trim ring will fit gaps up to 1" on the sides and ½" on the top of the unit for a neat, finished appearance. All models include a remote control.
LITERATURE DOWNLOADS
FRIEDRICH UNIFIT SALES BROCHURE
FRIEDRICH WALLMASTER SALES BROCHURE FEATURES & BENEFITS
Six-way air-flow control
Stale-air exhaust
Remote control
24-hour programmable timer
Three-speed fan
Auto restart
Washable antimicrobial filter
Defrost control
MoneySaver® setting saves money by conserving energy
Rotary compressors provide quiet, dependable performance
Seacoast protection for corrosion resistance in harsh environments
AHAM-certified performance
UL and C-UL-US listed
Uni-Fit chassis is 24" wide for installations from 24.5" to 27"
Universal fit trim ring for a neat, installed appearance with larger sleeves
USC sleeve designed to fit a standard 26" opening. Sleeve is required for new installations. USC sleeve is sold separately.
Optional replacement exterior grille available for use with existing sleeve
New installations require a USC sleeve, which is sold and shipped separately (see Accessories for details)PRODUCT SPECIFICATIONS
Cooling Capacity BTU: 11,500/11,200
Cooling Current (Amps): 5.6/6.0
Cooling Power (Watts): 1,230/1,190
EER Rating: 9.4/9.4
Moisture Removal (Pints/Hour): 3.80
Heating Capacity BTU: 11,200/9,200
Heating Current (Amps): 15.3/14.0
Heating Power (Watts): 3,500/2,900
Heat Pump Capacity BTU: N/A
Heat Pump Amps: N/A
Heat Pump Watts: N/A
COP: N/A
Air Flow CFM (H/M/L): 290
Wall Sleeve Needed for New Installations: USC
ELECTRICAL DATA
Voltage: 230/208 Volt
NEMA Plug Configuration: NEMA 6-20P
Power Cord Length: 4'
DIMENSIONS & WEIGHT
Unit Width: 24"
Unit Height: 14 3/8"
Unit Depth: 24"
Net Weight: 80 lbs.
Shipping Weight: 87
LITERATURE DOWNLOADS
FRIEDRICH UNIFIT SALES BROCHURE
FRIEDRICH WALLMASTER SALES BROCHUREMANUFACTURERS WARRANTY
FIRST YEAR ANY PART: If any part supplied by Friedrich fails because of a defect in workmanship or material within twelve months from date of original purchase, Friedrich will repair the product at no charge, provided room air conditioner is reasonably accessible for service
SECOND THROUGH FIFTH YEAR-SEALED REFRIGERANT SYSTEM: If the Sealed Refrigeration System (defined for this purpose as the compressor, condenser coil, evaporator coil, reversing valve, check valve, capillary, filter drier, and all interconnecting tubing) supplied by Friedrich in your Room Air Conditioner fails because of a defect in workmanship or material within sixty months from date of purchase, Friedrich will pay a labor allowance and parts necessary to repair the Sealed Refrigeration System
To contact Friedrich for Warranty and Service information call, 1-800-541-6645
