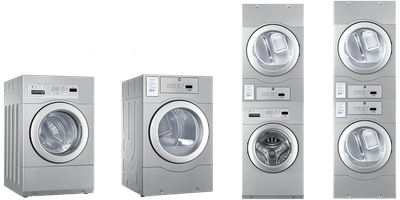

Encore WDLHS0315ENM Semi-Commercial Front Load Stacked Washer / Electric Dryer, 22lb Capacity, 208-240Volt/60Hz, Energy Star and CSA Certified, CEC and Proposition 65 Compliant**CALL FOR PRICE 1-866-538-1651 The Encore small chassis stacked washer/dryer is a revolutionary product engineered exclusively for semi-commercial use. Prior to Encore there were two types of laundry equipment: residential and commercial. Now there is the Encore washers and dryers, that provides commercial grade durability with easy to install residential hookups keeping the price down
Encore washers and dryers feature: 15,000+ cycle life versus 7,000 cycles for home appliance laundry, CrossBalance technology keeps loads balanced, shortening the time spent doing laundry. Commercial grade materials, along with 4 easy to use wash cycles and quiet operation means Encore is the perfect option for bed and breakfast homes, or multi-unit residence with laundry in each unit. 300 G-force extraction and low water consumption along with extra-large capacity and axial airflow dryer for large families and bulky items give your tenants a better way to do laundry. Energy Star and CSA Certified, CEC and Proposition 65 Compliant. Encore small chassis washers and dryers are also available in coin and card vended
Encore Laundry Literature Downloads
Encore Stacked Washer Dryer Brochure FEATURES & BENEFITS
- Stacked washer & dryer for tight spaces
- 22lb capacity (3.5 cuft washer / 7.7 cuft dryer)
- 300 G-force washer extraction
- Energy Star and CSA certified
- CEC, and Proposition 65 Compliant
- Commercial grade construction
- 15,000+ cycle machine life design
- Professional 8-point suspension
- 4 wash cycle options
- Simple, easy to use operation
- 3 compartment soap drawer
- Residential type utility connections
- 27" width, perfect for tight spaces
- Saves up to 60% on water vs top load washers
- Soft-mount technology for easy installation on any floor
PRODUCT SPECIFICATIONS
- Capacity (lb/kg): 22 / 10
- Width (in/mm): 27 / 686
- Depth (overall) (in/mm): 31 / 787
- Height (in/mm): 85-5/8 / 2174
- Door Opening Diameter (in/mm): N/A
- Cylinder Volume washer / dryer (ft3/l): 3.5/99.1 / 7.7/219
- Drain Outlet Diameter (in/mm): 1 / 25.4
- Height to Centerline of Drain: Pump Drain for Residential Type Drain Locations
- Extract (rpm/G-force): 1050 / 300
- Noise Level (dBA): <73
- Crated Width (in/mm): 40x2 / 1016x2
- Crated Depth (in/mm): 48x2 / 1219x2
- Crated Height (in/mm): 53x2 / 1346x2
- Crated Weight washer / dryer (lb/kg): 314/142 / 176/80
- Voltage/Frequency/Phase/Breaker(gas dryer): 120/60/1/15A
- Voltage/Frequency/Phase/Breaker (electric dryer): 208-240/60/1/30A
- Water Inlet: 1 Hot and 1 Cold - 3/8 inch (hoses included)
- Recommended Water Pressure (psi/kPA): 10-90 / 70-600
ENCORE LAUNDRY LITERATURE DOWNLOADS
- Encore Stacked Washer/Dryer Brochure
MANUFACTURERS WARRANTY
This limited parts warranty is extended by Laundrylux to the first owner when the Encore unit is installed, maintained and operated according to the instructions supplied with or available for the unit. Laundrylux will provide a free replacement for any of the following parts which fails as a result of a defect in material or manufacturing, for the warranty periods shown below. These periods are from the date of purchase or 90 days after manufacture, whichever is later. Proof of purchase is required to qualify for this limited warranty along with a validated serial number. Replacement parts are warranted for the remaining portion of the original warranty period applicable to the part or 90 days, whichever is longer. Warranty replacement parts may be new or remanufactured to Laundrylux’s specifications.
On Premise Laundry:
- Any Encore washer or dyrer installed in an on-premises laundry (OPL) is covered by a limited parts warranty on all washer parts for 3 years (36 months), excluding any damage which may be caused directly or indirectly by laundry chemicals or ozone. Examples of on-premises laundries include, but are not limited to, truck stops, pet groomers, schools, restaurants, health care facilities, motels, hotels, fitness centers, beauty salons, and spas. The washer pump is not a macerating pump so it is not warranted for continuous use with concentrations of animal fur/hair or human hair; simply remove bulk fur or hair from laundry before washing.
Coin/Vended/Route Laundry:
- 3 Years (36 months) limited parts warranty on all washer and dryer parts.
- 5 Years (60 months) limited parts warranty for washers on the outer cylinder, bearings & seals.
- 5 Years (60 months) limited parts warranty for washers on the steel cabinet panels against rust-through from the inside out.
- 10 Years (120 months) limited parts warranty for washers on the stainless steel cylinder against rust through.
- 1 Year (12 months) limited parts warranty on coin meters and debit card readers sold by Laundrylux as original equipment for Encore washers / dryers.
EXCLUSIONS: This limited parts warranty does not cover the following:
- Machines with original serial numbers removed, altered or not readily determinable.
- Normal wear and tear.
- Damage due to abuse, misuse, vandalism, acts of nature, fire or other peril.
- Damage due to failure to properly install, maintain or operate the machine as specified in the manufacturer¡¦s installation and operating instructions. Be sure to remove all shipping securities before operating the washer!
- Damage due to fluctuations in electrical power, spikes or other electric service anomalies.
- Damage due to services performed by unauthorized service companies or use of parts other than genuine Crossover replacement parts.
- Service calls or labor to repair or install parts or the machine.
- Damage due to use of non-standard laundry chemicals or processes or due to overdosing, spills or drips of standard laundry chemicals.
- Damage due to use of the machine in proximity to perchloroethylene or other solvents or corrosive agents.
- Accessory parts sold separately and not factory-installed, including but not limited to payment or meter devices from third-party vendors and any software and/or hardware provided therewith, or damage resulting from integration of such devices, software and hardware with the washer.
- Damage to laundered items and damage due to laundering non-standard laundry & linen items.
- Shipping damage.
DISCLAIMER AND LIMITATION OF REMEDIES: YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PART REPAIR OR REPLACEMENT, EXCLUDING LABOR, AS
PROVIDED HEREIN. THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY AND ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED, ORAL OR WRITTEN, IN FACT, BY OPERATION OF LAW OR OTHERWISE, INCLUDING WITHOUT LIMITATION, A WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE OR A WARRANTY OF MERCHANTABILITY. LAUNDRYLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE, LOSS OF
ANTICIPATED PROFITS AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY OR ARISING OUT OF THE EXISTENCE OR USE OF THIS MACHINE. THIS WARRANTY MAY NOT BE CHANGED OR MODIFIED
IN ANY MANNER AND NO EMPLOYEE, DEALER, DISTRIBUTOR OR OTHER PERSON MAY EXTEND, EXPAND OR MODIFY THIS WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR THE
LIMITATION ON THE DURATION OF IMPLIED WARRANTIES SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER LEGAL RIGHTS THAT VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
PROCEDURES:
- Contact your authorized Encore distributor to initiate a warranty claim and have the following information available: machine model and serial number (see data plate on the dryer) and, if available, the part number which has failed or a description of the malfunction. Repair or replacement of warranty parts must be performed by an authorized Encore distributor or service organization unless exempted by Laundrylux’s Technical Service Department. This is for your safety and the safety of users of the dryer.
- The distributor will contact Laundrylux to open a warranty claim. Provided we receive written notification of any claimed defect within 30 days of discovery and within the applicable warranty period, we will, at our option, repair or replace the defective part. Laundrylux may, or may not, require that defective parts be returned to us to provide important data for our quality improvement systems. Returned parts must be shipped freight prepaid, and we reserve the right to inspect parts to confirm warranty coverage. We will repair or replace the part and send it to your designated address via standard freight prepaid delivery. If requested, expedited or overnight freight is available at your sole expense.
- No part may be returned to Laundrylux for repair or replacement without prior written authorization from Laundrylux. Charges for unauthorized repairs will not be accepted or paid by Laundrylux.
- This limited warranty applies only in the United States, District of Columbia and Canada to machines sold by Laundrylux or an authorized distributor
