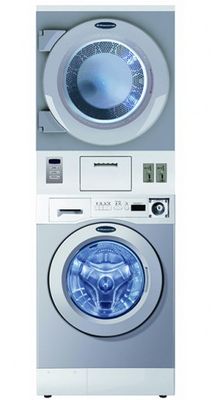

Crossover WDSGNM Commercial Stacked Washer and Gas Dryer, Non-Coin Model, Front Load and Front Controlled, 120/240/60/1/30A, Energy Star Rated

Crossover WDSGNM Commercial Stacked Washer and Gas Dryer, Non-Coin Model, Front Load and Front Controlled, 120/240/60/1/30A, Energy Star Rated

The Crossover small chassis washer is a revolutionary product engineered exclusively for commercial use. Prior to Crossover there were two types of washers – Appliance and Professional. Now there is the Crossover small chassis washer and dryer – they bridge the quality gap while keeping the price down. Crossover Small Chassis Washers and Dryers feature: 15,000+ cycle life versus 7,000 cycles for home appliance washers, CrossBalance technology keeps loads balanced, shortening the time spent doing laundry. No error codes-Crossover washers finish the cycle, Perfect replacement option for old home appliance washers, 300 G-force extraction and low water consumption to maximize your profits, Double plus load capacity convenience with easy to use controls that give your tenants a better way to do laundry, ADA Compliant, CEE Tier 3 compliant, Energy Star rated and Crossover small chassis washers and dryers are available in coin and card vended.

CROSSOVER LAUNDRY LITERATURE DOWNLOADS

Crossover Stacked washer Dryer Sales Brochure

FEATURES & BENEFITS

15,000+ cycle machine life design
Large high security coin vault
4 professional wash programs, + 2 cycle options
Field adjustable water levels + cycle
Top quality SKF bearings in heavy duty assembly
3 seals (with 5 lips) protect bearings
AC motor (no brushes)
Professional 8-point suspension & Pump Drain Standard
Solid steel counterweights—no concrete
Commercial grade construction
22+ lb capacity and 7 1/2 cu ft drum
Stainless steel non-removable lint screen
Roller supported tumbler
Tapered sealed ribs bring load forward improving dryer performance
Superior oversuds and unbalance tolerance
Extra large door opening for easy loading and unloading
Heavy-duty door hinge
High speed 300G maximum extraction
Simple, easy to use operation
Axial airflow ensures the shortest drying time
Easy clean lint screen
Large capacity tumbler can handle oversized loads
3 compartment soap drawer
27” width for easy plug-in top-loader replacement
Soft-mount technology for easy installation on any floor
Space saving, stack washer/dryer can be installed in the same footprint as a stand alone washer

PRODUCT SPECIFICATIONS

Motor: 1/3 HP
To run washer/dryer stack 2x15A for Washer/Gas Dryer 15A + 30A for Washer/Electric Dryer
Dryer Electrical (Gas): 120V/60Hz/1-phase
Dryer Electrical (Electric): 208-240V/60Hz/1-phase
Dryer Breaker/Fuse Req.: 15A for Gas / 30A for Electric
Washer Electrical: 120V/60Hz/1-phase
Washer Breaker Req.: 15A
Washer Cylinder Volume: 3 1/2 cu ft (98 liters)
Dryer Cylinder Volume: 7 1/2 cu ft (212.4 liters)
Washer Cylinder Diameter: 21 5/8 in (550 mm)
Dryer Cylinder Diameter: 25 3/4 in (654 mm)
Dryer Cylinder Depth: 24 in (609 mm)
Wash Capacity: 22 lbs (10kg)
Capacity (Dry Weight): 22 lbs (10Kg)
Washer Door Opening: 15 in (380 mm)
Dryer Door Opening: 17 1/4 in (438 mm)
Airflow (Gas & Electric): 220 cfm
Electric Heating: (240VAC) 5.4 kW
Gas Heating: 26,000 Btu/hr (6,550 kcal/hr)
Gas Connection: 3/8 in MNPT
Wash Speed: 45 RPM
Tumbling Speed: 50 rpm
Exhaust Connection: 4 in Dia.
Overall Dimensions W D H: 27 1/8 x 31 3/4 x 77 1/2 in
Overall Dimensions W D H: 686 x 807 x 1968 mm
Approximate Net Weight Dryer: 176 lbs
Washer: 299 lbs (Total 475 lbs)

CROSSOVER LAUNDRY LITERATURE DOWNLOADS

Crossover Stacked washer Dryer Sales Brochure

MANUFACTURERS WARRANTY

Laundrylux warrants all new Crossover dryers (and the original parts) to be free from defects in material or workmanship for a period of 3 years from the date of sale, but in no event more than 3-1/2 years from the date of manufacture thereof, except as hereinafter provided. All Crossover equipment and parts are to be purchased solely for light commercial use.

This warranty extends only to the original purchaser of Crossover products and to those persons who, under applicable state law, are entitled to rely hereon as third party beneficiaries, but in no event shall Laundrylux be liable for property damage sustained by such a third party beneficiary if said applicable state law contemplates such liability but permits its exclusion.

With respect to repair or replacement parts for which the 3 year warranty period has expired the warranty period is 90 days from the date of sale. The warranty period on each replacement part furnished by Laundrylux in fulfillment of this warranty shall be for the unexpired portion of the original 3-year warranty period. Laundrylux’s total liability arising out of the manufacture and sale of new equipment and parts, whether under the warranty or caused by Laundrylux’s negligence or otherwise, shall be limited to Laundrylux repairing or replacing, at its option, any defective equipment or part returned f.o.b. to Laundrylux, transportation prepaid, within the applicable warranty period and found by Laundrylux to have been defective.

The liability of Laundrylux does not include furnishing or paying for any labor such as that required to service, remove, or install; to diagnose troubles; to adjust, remove, or replace defective equipment or a part; nor does it include any responsibility for transportation or insurance or other related expense which is involved therein.

Procedures:

Contact your Authorized Laundrylux Distributor for parts pricing, delivery, technical service and repair. Please have available at the time of your call the following required information: machine model number (see data plate on dryer), machine serial number (on data plate), and, if available, the part number. Repair or replacement of major machine components must be performed by an Authorized Laundrylux Distributor or service organization, unless exempted by Laundrylux’s Technical Service Department.
We will not pay for parts or freight unless covered under this limited warranty and specifically authorized by our Technical Support Department. If, in our sole reasonable discretion, we determine parts have been provided which were not covered under this limited warranty, we reserve the right to charge for all expenses incurred in providing parts hereunder, including but not limited to the price for parts and transportation expense. Laundrylux reserves the right to make any changes in parts, design or the construction of its machines without notice and without obligation to modify any previously manufactured machine.
This limited warranty applies only in the United States, District of Columbia and Canada to machines sold by Laundrylux or its Authorized Distributor. Please read the operating manual carefully so you understand all the features of the products you have purchased.

The warranty is conditioned upon installation and use of the equipment under normal operating conditions. The warranty is void on equipment or parts that have been subjected to misuse, accident, or negligent damage; operated under loads, pressures, speeds, utility connections, plumbing, or conditions other than those specified by Laundrylux; operated or repaired with other than genuine replacement parts; damaged by fire, flood, vandalism, or other causes beyond the control of Laundrylux; altered or repaired in any way that affects the reliability or detracts from its performance; which have had the identification plate or serial number altered, effaced, or removed; or which have been located in the proximity of dry cleaning machines and/or perchloroethylene. No defective equipment or part may be returned to Laundrylux for repair or replacement without prior written authorization from Laundrylux.

Charges for unauthorized repairs will not be accepted or paid by Laundrylux. The waiver by Laundrylux of any individual term of this warranty shall not operate as a waiver of any other term of this warranty or of any future right, power, or privilege of Laundrylux. Laundrylux is not responsible for any injury, property damage, or other consequential or incidental damages arising directly or indirectly from the purchase or use of its products or from any defect in material or workmanship.

Laundrylux makes no other express or implied warranty, statutory or otherwise, concerning the equipment, parts, or service, including, without limitation, a warranty of fitness for a particular purpose, a warranty of merchantability, or any other implied warranties which may arise from course of dealing or usage of trade. The warranties given here are expressly in lieu of all other warranties, express or implied. Laundrylux neither assumes, nor authorizes any person to assume for it, any other warranty or liability in connection with the manufacture, use, or sale of its equipment or parts
