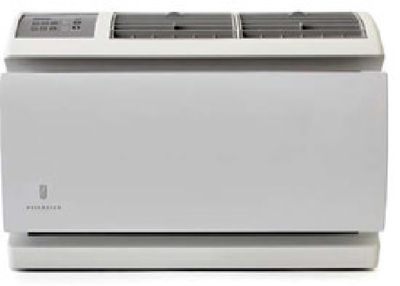

Friedrich WCT10A30A WallMaster Through the Wall Air Conditioner, 10,000 BTU, 230/208 Volt, EER Rating of 10.7, GoldFin Protection, Digital Controls with Remote Control, Wall Sleeves Needed for New Installations Sold SeparatelyWhether you're replacing an existing air conditioner or working on a project that requires a more permanent installation, WallMaster is a perfect fit for existing 27" sleeves. Once installed, there is no discernible gap between the unit and the sleeve, for a clean, finished appearance and minimal intrusion of outdoor air.
Built with the best commercial-grade materials and components, WallMaster is durable yet quiet. Its solid-side sleeve assures maximum performance in thicker wall applications and gives you multiple installation options. Plus, the Baffle Adapter Kit expands the depth of sleeves that can accommodate WallMaster.
Choose from cooling-only, cooling with electric heat or a heat pump, including ENERGY STARŽ qualified models. All WallMasters come with a wireless remote plus convenient top-mount controls, a 24-hour programmable timer, an energy-efficient MoneySaverŽ setting and many other premium features.
LITERATURE DOWNLOADS
FRIEDRICH UNIFIT SALES BROCHURE
FRIEDRICH WALLMASTER SALES BROCHURE FEATURES & BENEFITS
Environmentally friendly R-410A refrigerant used in all models.
Programmable 24-hour timer with remote lets you program on/off times and memory back-up saves settings if power is interrupted.
Exact fit for Fedders A sleeves. Fits Fedders B sleeves with kit.
Solid side chassis allows for installation into thicker walls than standard room air conditioners.
The most Energy Efficient Solid-side Air Conditioner available.
MoneySaver setting saves energy by turning the fan on and off with the compressor.
The Smart Fan feature adjusts the fan speed to maintain the desired temperature.
Easy-to-clean filter.
3 Speed Fan.
Auto memory backup.
Easy-to-reach top-mounted controls.
Sleeves sold and shipped separately.PRODUCT SPECIFICATIONS
Cooling Capacity BTU: 10000/9800
Cooling Current (Amps): 4.5/4.9
Cooling Power (Watts): 1020/1000
EER Rating: 9.8/9.8
Moisture Removal (Pints/Hour): 1.50
Heating Capacity BTU: N/A
Heating Current (Amps): N/A
Heating Power (Watts): N/A
Heat Pump Capacity BTU: N/A
Heat Pump Amps: N/A
Heat Pump Watts: N/A
COP: N/A
Air Flow CFM (H/M/L): 260
Wall Sleeve Needed for New Installations: WSE
ELECTRICAL DATA
Voltage: 230/208 Volt
NEMA Plug Configuration: NEMA 6-15P
Power Cord Length: 4'
DIMENSIONS & WEIGHT
Unit Width: 26 1/2"
Unit Height: 15 3/4"
Unit Depth: 22"
Net Weight: 101 lbs.
Shipping Weight: 105
LITERATURE DOWNLOADS
FRIEDRICH UNIFIT SALES BROCHURE
FRIEDRICH WALLMASTER SALES BROCHUREMANUFACTURERS WARRANTY
FIRST YEAR ANY PART: If any part supplied by Friedrich fails because of a defect in workmanship or material within twelve months from date of original purchase, Friedrich will repair the product at no charge, provided room air conditioner is reasonably accessible for service
SECOND THROUGH FIFTH YEAR-SEALED REFRIGERANT SYSTEM: If the Sealed Refrigeration System (defined for this purpose as the compressor, condenser coil, evaporator coil, reversing valve, check valve, capillary, filter drier, and all interconnecting tubing) supplied by Friedrich in your Room Air Conditioner fails because of a defect in workmanship or material within sixty months from date of purchase, Friedrich will pay a labor allowance and parts necessary to repair the Sealed Refrigeration System
To contact Friedrich for Warranty and Service information call, 1-800-541-6645
